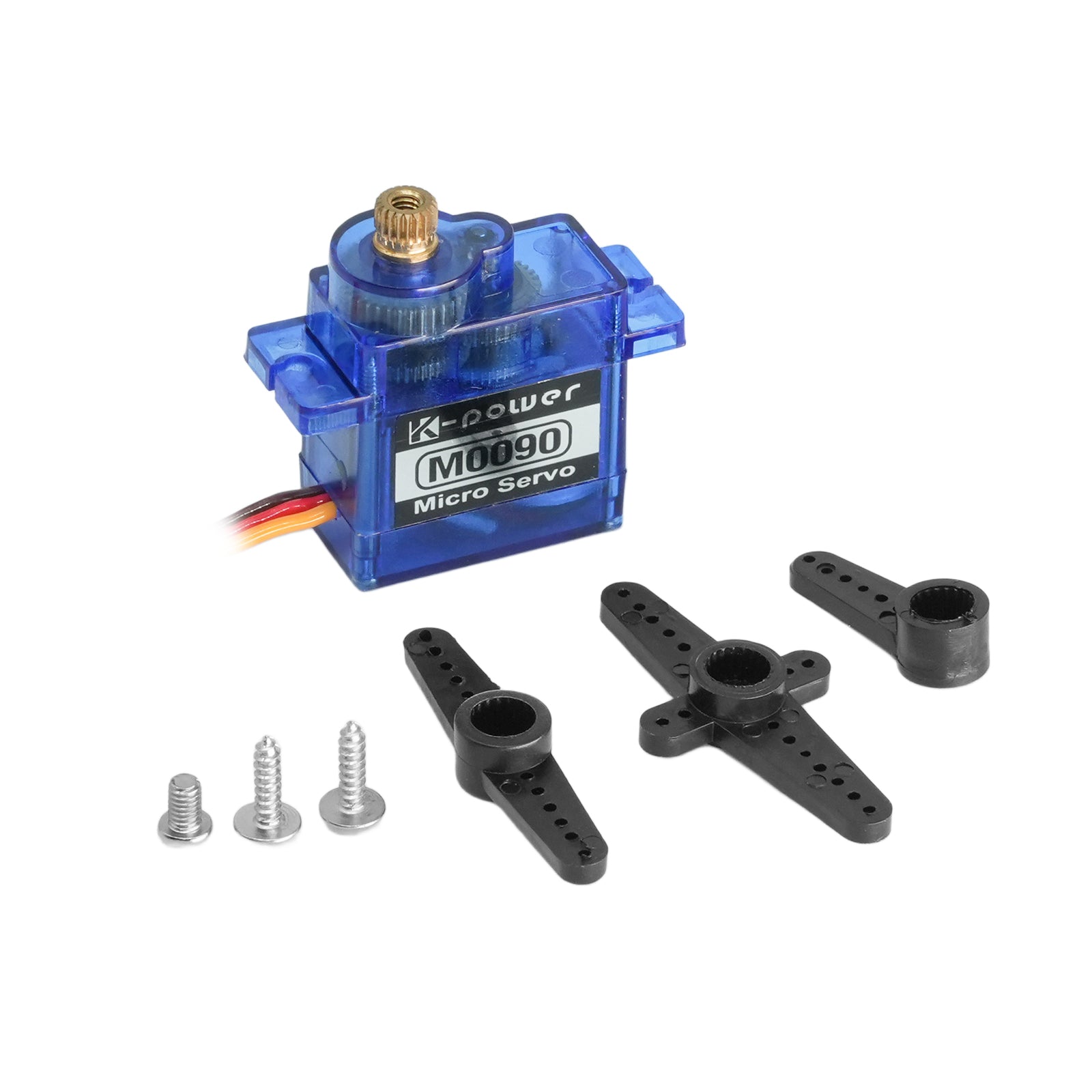

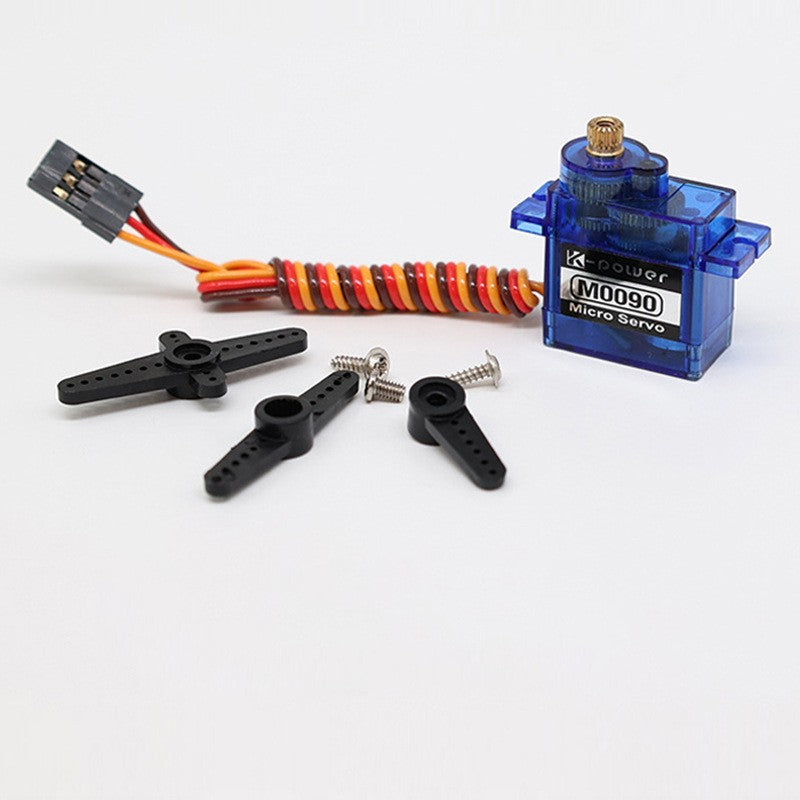

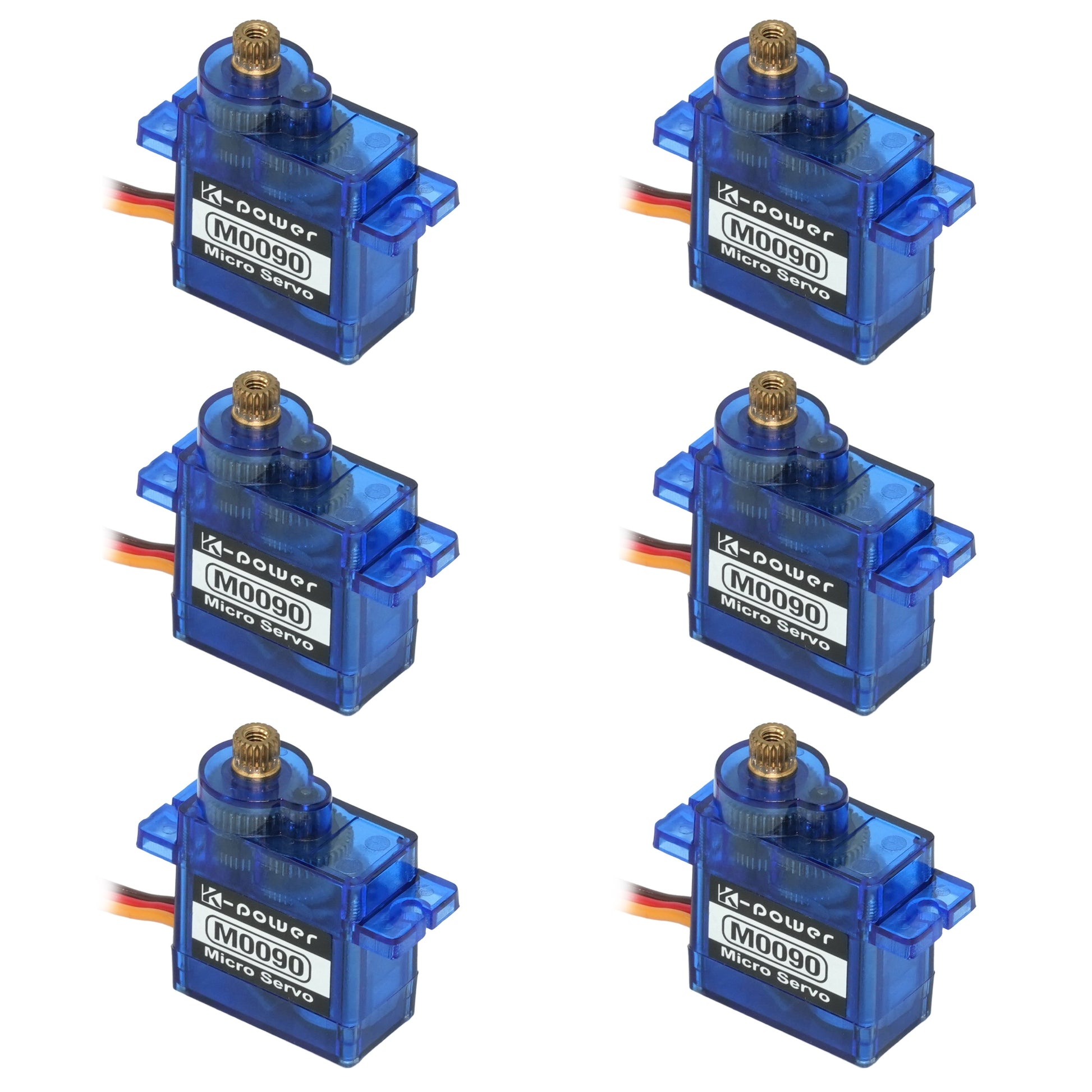

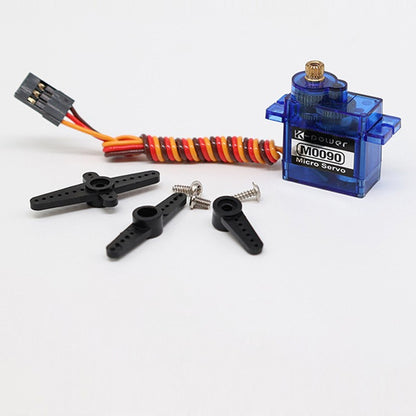

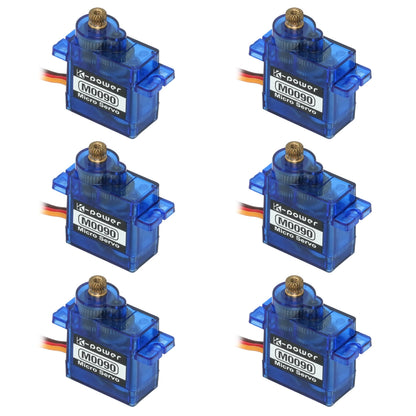

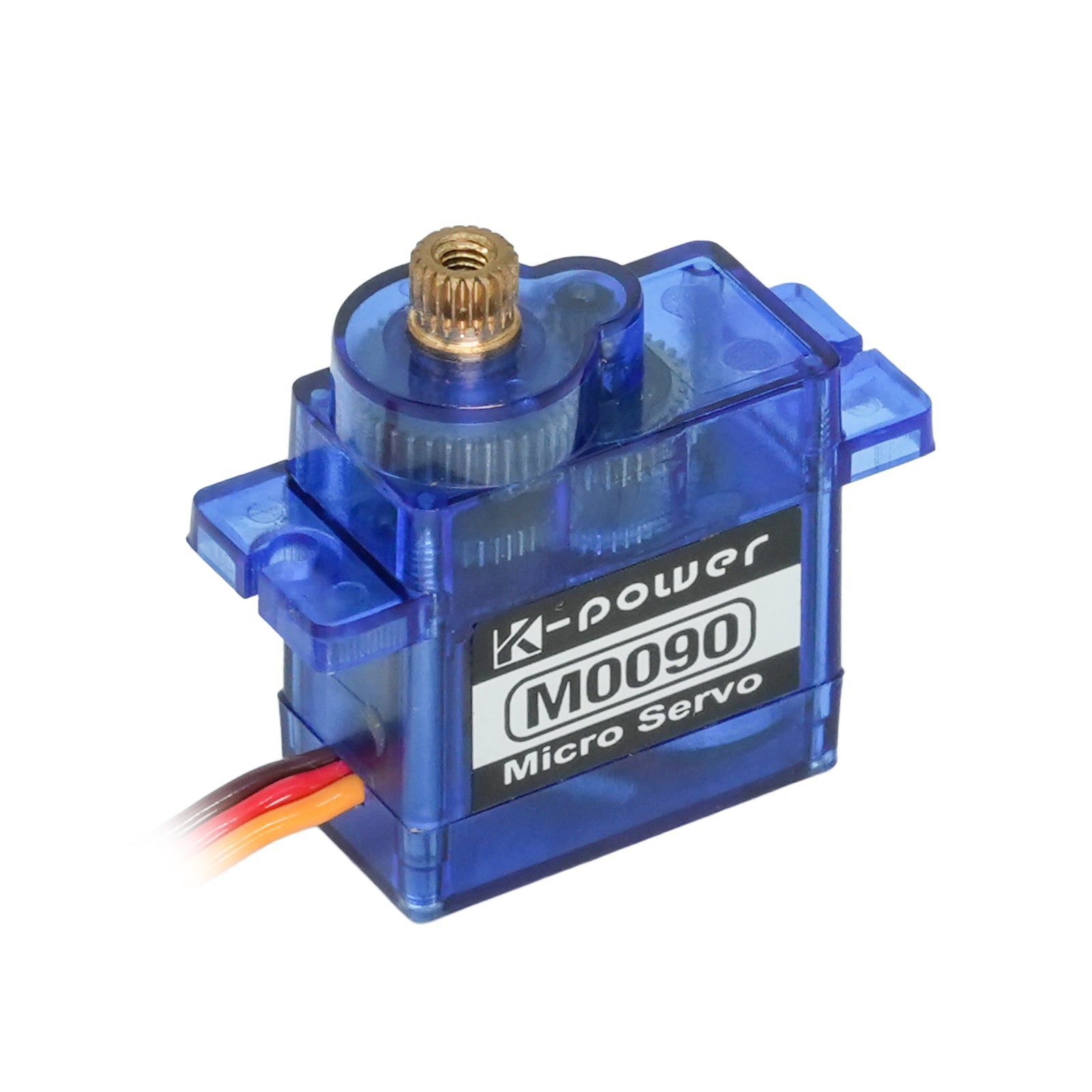

K-power M0090 (upgraded MG90S) Digital Micro Servo Motor with Metal Gears
K-power M0090 (upgraded MG90S) Digital Micro Servo Motor with Metal Gears
Regular price
£24.00 GBP
Regular price
Sale price
£24.00 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
As we continue to source better quality servos, we are exciting to lunch this K-power M0090 Micro Servo Motor to replace the original MG90S Micro Servo Motor that we are selling. It is more reliable and is also compatible for the ε-SERIES ANIMATRONIC EYE MECHANISM design.
Specification:
| Amplifier type | Digital control |
| Stalled rotor torque | 2 kg*cm |
| Rated torque | 0.5 kg*cm |
| No-load speed | 0.08 sec/60° |
| Stalled rotor current | 800 mA |
| Operating Voltage | 4.8~8.4 V |
| Travel Angle | 180° |
| Protocol | PWM ITTLIRS-485 |
| Working Frequency | 50~333 Hz |

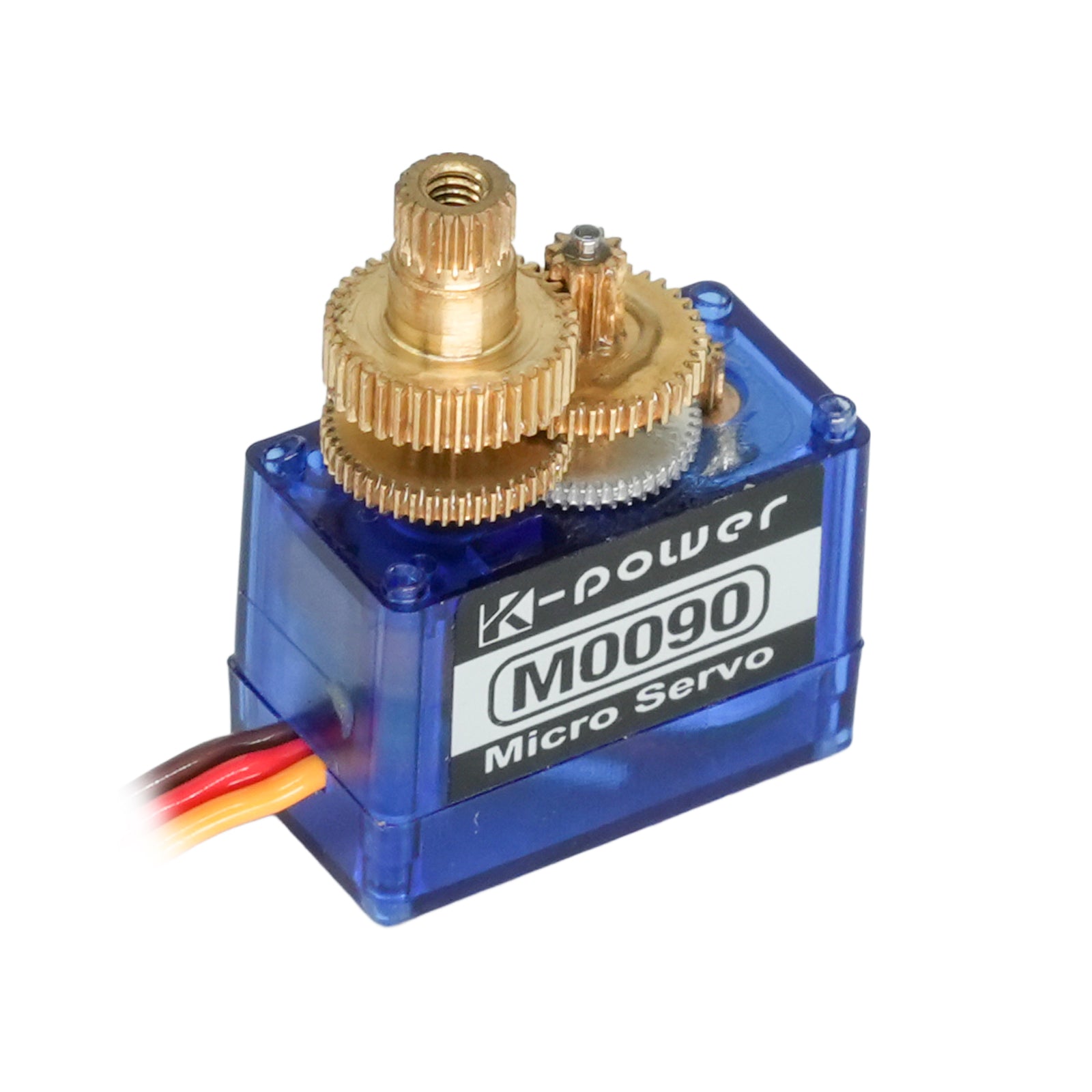

| Gear Material | Metal |
| Case Material | Plastic |
| Position sensor | Potentiometer |
| Motor | DC Brushed |

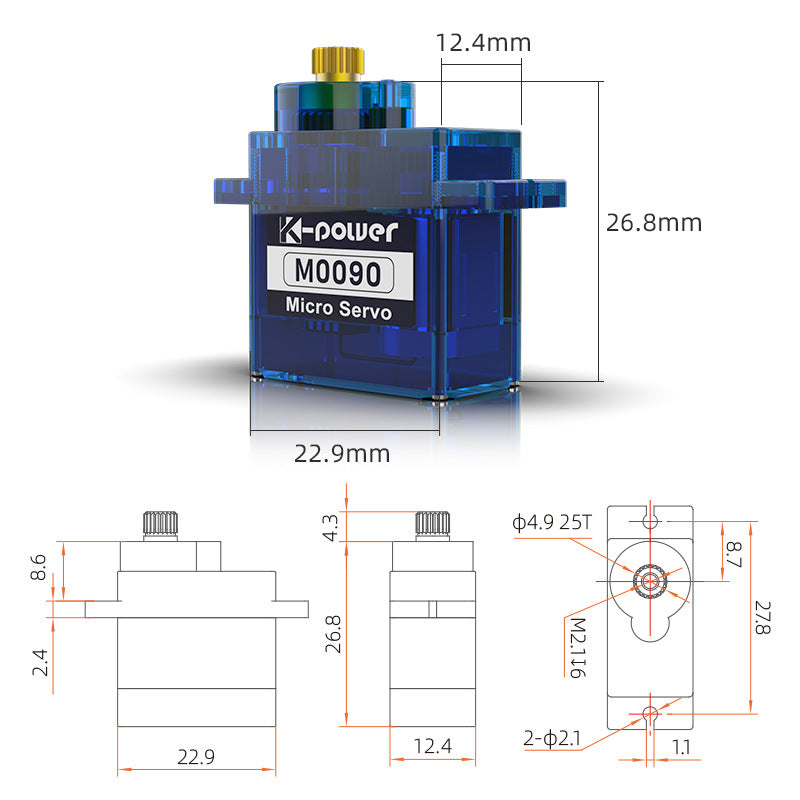

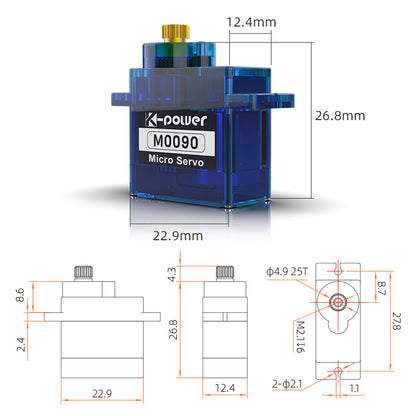

| Spline | 20T ф4.76 mm |
| Operating Temperature | -10~50°C |
| IP Rating | IP42 |
Refer to the design (https://nmrobots.com/pages/designs) for all other components.
This is part of a project intended for experienced makers and engineers. It may require some technical knowledge to use effectively. By purchasing, you acknowledge the need for appropriate skills in 3D printing and DIY projects.
