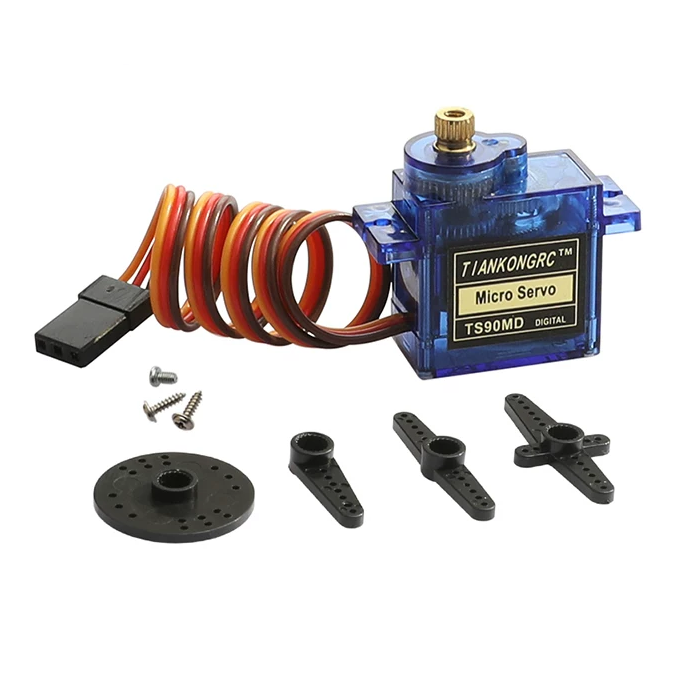

TIANKONGRC TS90MD Micro Servo Motor with Metal Gears
TIANKONGRC TS90MD Micro Servo Motor with Metal Gears
Regular price
£26.00 GBP
Regular price
Sale price
£26.00 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
As we tested out a bunch of servos from various suppliers, we are exciting to lunch this TIANKONGRC TS90MD Micro Servo Motor as the best alternative to the original MG90S Micro Servo Motor that we are selling. It has the best balance between noise level, speed, torque and cost. It is also compatible for the ε-SERIES ANIMATRONIC EYE MECHANISM design.
Specification:
| Amplifier type | Analog control |
| Stalled rotor torque | 2.2 kg*cm / 6V |
| Rated torque | 0.5 kg*cm ? |
| No-load speed | 0.11 sec / 60° |
| Stalled rotor current | 800 mA ± 10% |
| Unloaded rotor current | 220 mA |
| Operating Voltage | 4.8~6 V |
| Travel Angle | 200° ± 5° |
| Protocol | PWM |
| Working Frequency | 50~333 Hz |
| Gear Material | Metal |
| Case Material | Plastic |
| Position sensor | Potentiometer |
| Motor | DC Brushed |
| Spline | 20T ф4.9 mm |
| Operating Temperature | -10~50°C |
| IP Rating | IP42 |
Refer to the design (https://nmrobots.com/pages/designs) for all other components.
This is part of a project intended for experienced makers and engineers. It may require some technical knowledge to use effectively. By purchasing, you acknowledge the need for appropriate skills in 3D printing and DIY projects.
